Basic Charger Settings

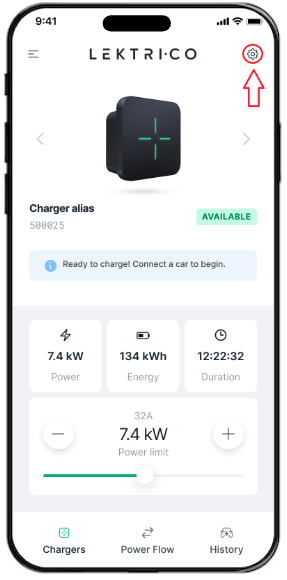

Access Settings Menu
In order to access the chargers settings you need to click on the settings wheel shown in the picture.

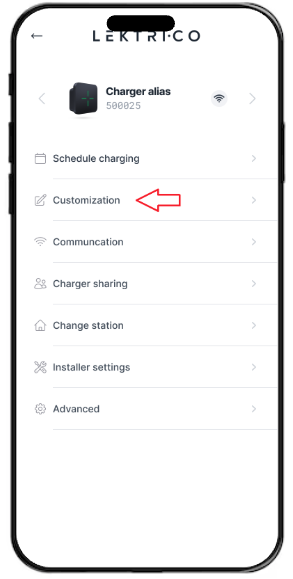

Customization
Selecting “Customization” you will be able to customize different settings of the selected charger.
LED Brightness
Using the slider you can adjust the brightness of the LED’s on the charger.
Nickname
In the “Nickname” section you can set a customised name/alias for you charger.

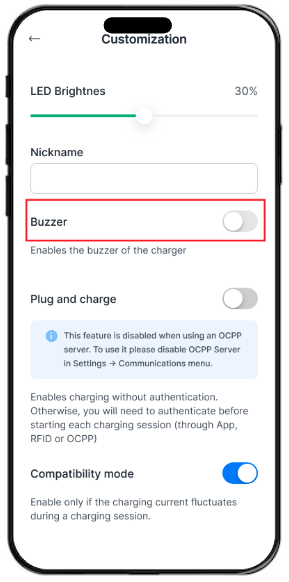

Buzzer
You can activate or deactivate the built in buzzer of your charger. If you want a silent charger simply disable the buzzer using the toggle.

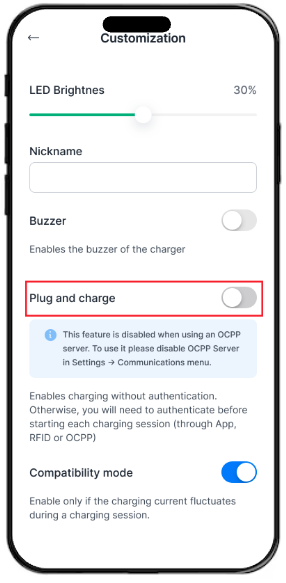

Plug and Charge
When activated your car will start charging automatically when plugged in. This means that if your charger is publicly accessible anyone who plugs in the car will be able to charge.
If you disable this feature, when you plug in the car, you will have to authorize the charging through the LEKTRI.CO app, RFID or OCPP.
Please note that using an OCPP server will automatically disable this feature.

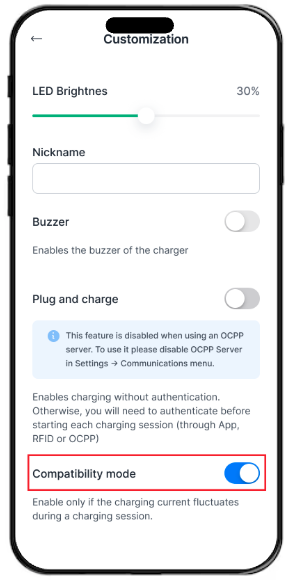

Compatibility mode
If the charging current fluctuates in an unusual manner, please activate this function.
If activated, during charging, all 4 LED bars on your charger will remain constantly lit. The rotating effect of the LED bars will disappear.
